DASH
Part Breakdown Image

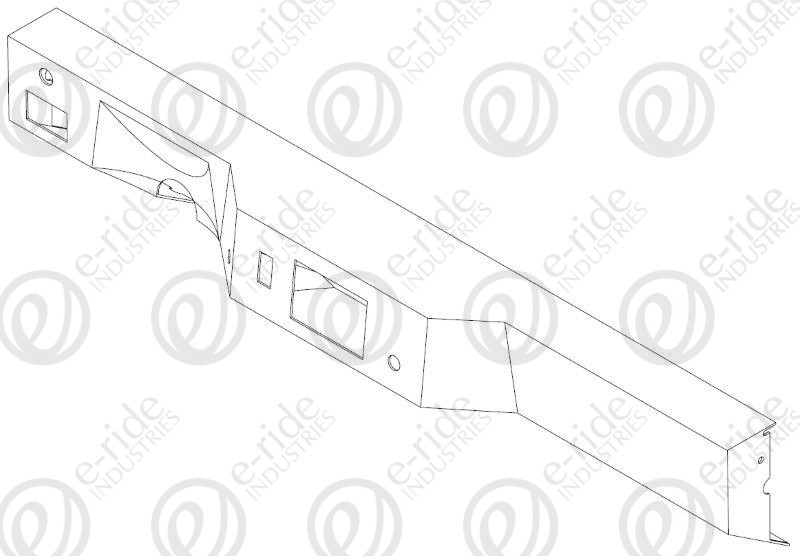

Fig #

1-1
EXV4 DASH - NO HEATER

EXV4 DASH - NO HEATER

Part Number: U6140A-B

EXV4 DASH - NO HEATER

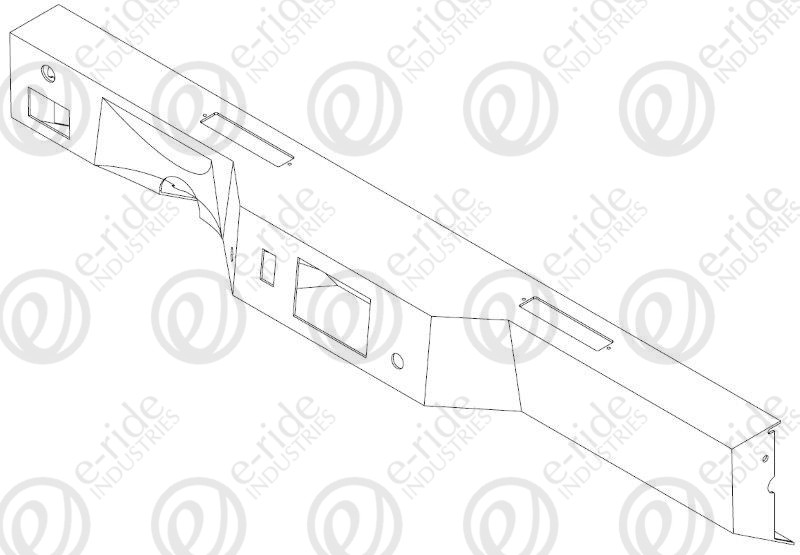

1-2
EXV4 DASH - WITH HEATER

EXV4 DASH - WITH HEATER

Part Number: U6141A-C

EXV4 Dash - With Heater

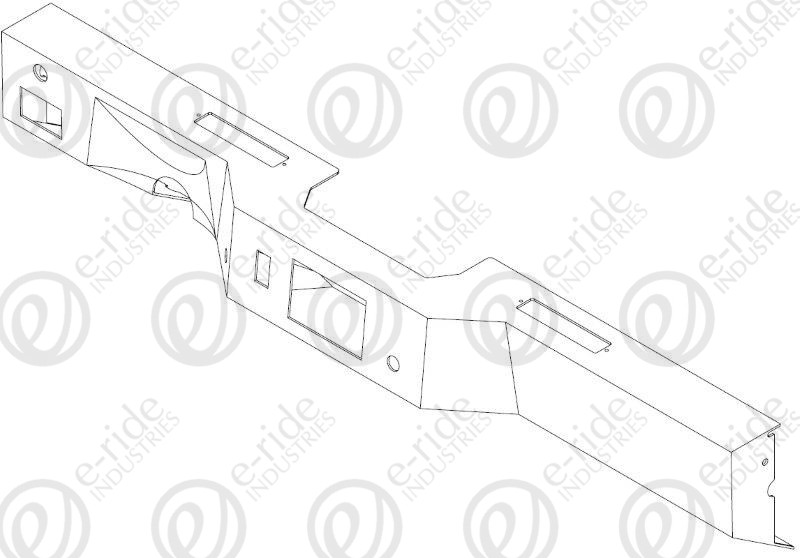

1-3
DASH

DASH

Part Number: U6142A-A

EXV4 Dash - With Heater and EAIR


3
SWITCH

SWITCH

Part Number: U5817A-N

SWITCH MOUNTING PANEL SINGLE

$  6.59

Delete from cart?
4
SWITCH

SWITCH

Part Number: U5816A-N

SWITCH MOUNTING PANEL MIDDLE

$  3.76

Delete from cart?
5
SWITCH MOUNTING PANEL END

SWITCH MOUNTING PANEL END

Part Number: U5815A-N

SWITCH MOUNTING PANEL END

$  3.86

Delete from cart?
6
POWER SOURCE

POWER SOURCE

Part Number: U5813A-N

POWER SOURCE 12V OUTLET HOUSING

$  7.99

Delete from cart?
7
SWITCH

SWITCH

Part Number: U5811A-N

SPST ROCKER SWITCH BODY 12 VOLT 20 AMP NO LAMP

$  18.48

Delete from cart?
7-2
SWITCH WIPER W/WASHER

SWITCH WIPER W/WASHER

Part Number: U2637A-N

DPDT OFF-ON-MOM SWITCH WIPER W/WASHER

$  40.78

Delete from cart?
8
SWITCH

SWITCH

Part Number: U5810A-N

DPDT ROCKER SWITCH BODY 12 VOLT 20 AMP UNLIT

$  20.15

Delete from cart?
9
SWITCH ACTUATOR

SWITCH ACTUATOR

Part Number: U5820A-N

SW ACTUATORS RED HARD

$  3.02

Delete from cart?
10
SWITCH ACTUATOR

SWITCH ACTUATOR

Part Number: U5818A-N

BLACK CONTURA II ACTUATOR HARD PLASTIC W/ NO LENS

$  3.76

Delete from cart?
11
MOMENTARY PUSH BUTTON

MOMENTARY PUSH BUTTON

Part Number: U5805A-N

MOMENTARY PUSH BUTTON

$  6.29

Delete from cart?
12
CONNECTOR

CONNECTOR

Part Number: U5869A-N

14-16 GA NON INSULATED BUTT SPLICE CONNECTOR

$  0.48

Delete from cart?
13
PARKING BRAKE WARNING

PARKING BRAKE WARNING

Part Number: U8142A-OO

PARKING BRAKE WARNING

$  2.55

Delete from cart?
14
DECAL

DECAL

Part Number: U8112A-OO

E-RIDE/ELECTRIC VEHICLE LOGO DECAL - BLACK

$  4.83

Delete from cart?
15-1
ENGAGE IV DASH DISPLAY

ENGAGE IV DASH DISPLAY

Part Number: U5651A-N

ENGAGE IV DASH DISPLAY


15-2
DIGITAL DASH DISPLAY

DIGITAL DASH DISPLAY

Part Number: U5654A-C

DIGITAL DASH DISPLAY ENGAGE IV

$  290.82

Delete from cart?
16
SCREW

SCREW

Part Number: U2814A-N

6X3/4 PHIL FLAT TAPPING SCREW

$  0.40

Delete from cart?
17-1
FORWARD DASH LABEL

FORWARD DASH LABEL

Part Number: U8153A-OO

FORWARD DASH LABEL

$  1.13

Delete from cart?
17-2
REVERSE DASH LABEL

REVERSE DASH LABEL

Part Number: U8154A-OO

REVERSE DASH LABEL

$  1.13

Delete from cart?
17-3
HORN DASH LABEL

HORN DASH LABEL

Part Number: U8152A-OO

HORN DASH LABEL

$  1.13

Delete from cart?
17-4
3-SWITCH BLOCK DASH LABEL

3-SWITCH BLOCK DASH LABEL

Part Number: U8151A-OO

3-SWITCH BLOCK DASH LABEL

$  1.13

Delete from cart?
18
EXV4 LOCK AND SWITCH KIT

EXV4 LOCK AND SWITCH KIT

Part Number: KIT-38

EXV4 LOCK AND SWITCH KIT (LIST OF ITEMS WILL AUTO FILL IN CART)

$ 103.51

Delete from cart?
18E
KEYPAD PROGRAMMABLE

KEYPAD PROGRAMMABLE

Part Number: U5800A-N

KEYPAD PROGRAMMABLE KEY LOCK


20
CONNECTOR

CONNECTOR

Part Number: U5830A-N

MALE 2 PIN CONNECTOR MOLEX MLX 2.13MM

$  0.88

Delete from cart?
19
TERMINAL MALE MOLEX MLX

TERMINAL MALE MOLEX MLX

Part Number: U5842A-N

TERMINAL MALE MOLEX MLX

$  0.32

Delete from cart?

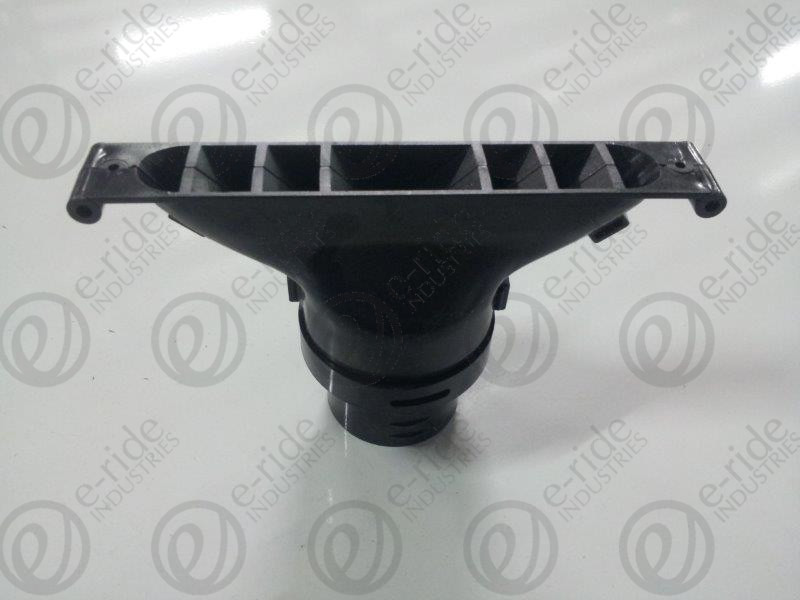

21
OVAL DEFROSTER VENT

OVAL DEFROSTER VENT

Part Number: U2408A-N

OVAL DEFROSTER VENT W/ADAPTER

$  51.79

Delete from cart?

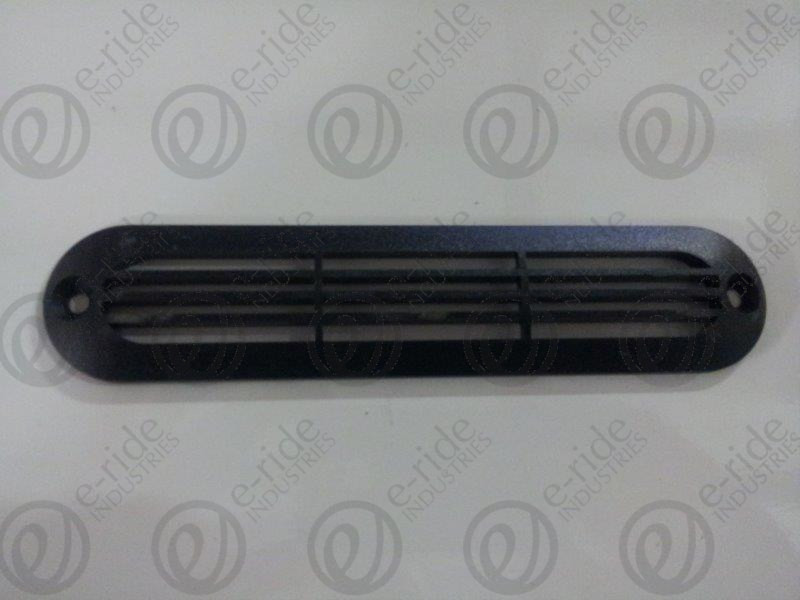

22
OVAL DEFROST VENT GRILLE

OVAL DEFROST VENT GRILLE

Part Number: U2405A-5N

OVAL DEFROST VENT GRILLE

$  20.38

Delete from cart?
