REAR DRIVE AXLE BREAKDOWN
Part Breakdown Image

Fig #

2
BEARING CAP BOLT

BEARING CAP BOLT

Part Number: U4200A-2N

BEARING CAP BOLT

$  1.94

Delete from cart?
4
SNAP RING

SNAP RING

Part Number: U4200A-4N

SNAP RING

$  2.35

Delete from cart?
5
O-RING

O-RING

Part Number: U4200A-5N

O-RING

$  1.58

Delete from cart?
6
INPUT SHAFT OUTER BEARING

INPUT SHAFT OUTER BEARING

Part Number: U4200A-6N

INPUT SHAFT OUTER BEARING

$  28.11

Delete from cart?
7
INPUT SHAFT INNER BEARING

INPUT SHAFT INNER BEARING

Part Number: U4200A-7N

INPUT SHAFT INNER BEARING

$  15.45

Delete from cart?
8

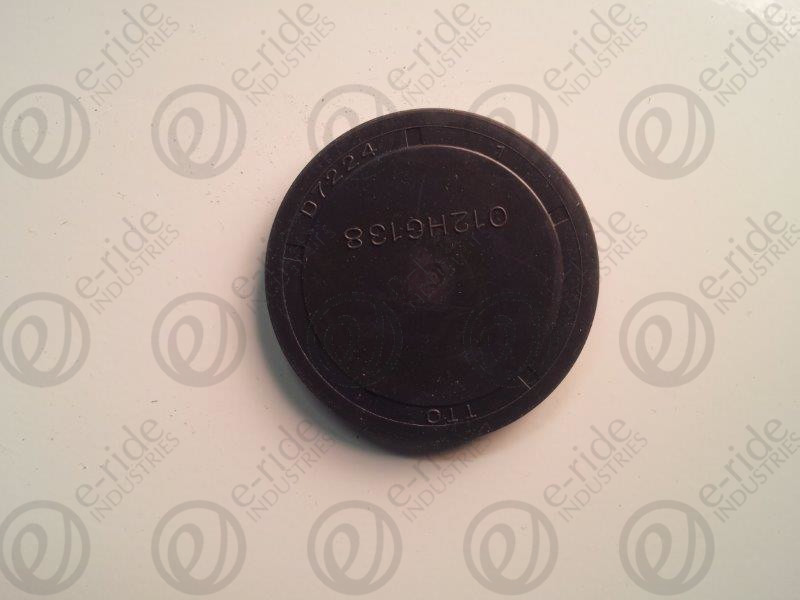

MIDDLE GEAR END SEAL PLUG

MIDDLE GEAR END SEAL PLUG

Part Number: U4200A-8N

INTERMEDIATE GEAR END SEAL PLUG

$  3.53

Delete from cart?
9
INTERMEDIATE GEAR BEARING

INTERMEDIATE GEAR BEARING

Part Number: U4200A-9N

INTERMEDIATE GEAR BEARING

$  27.67

Delete from cart?

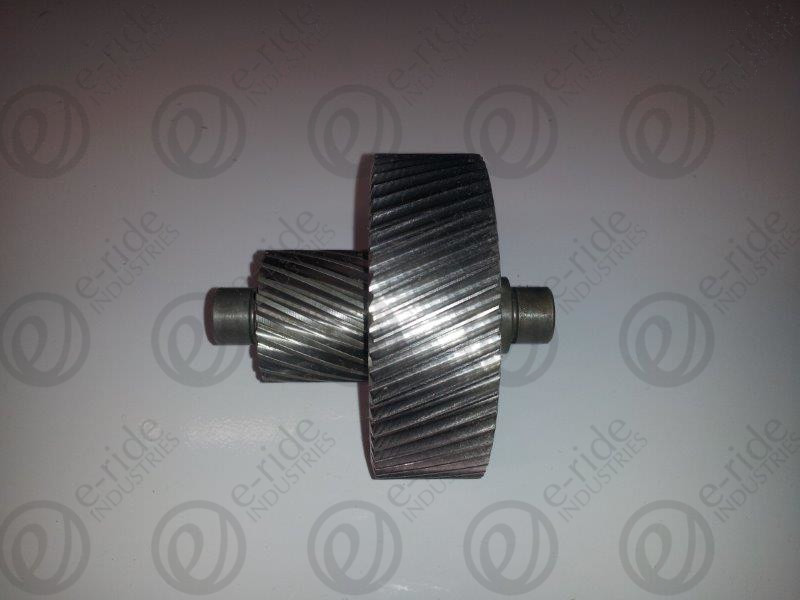

10
INTERMEDIATE GEAR 14.76

INTERMEDIATE GEAR 14.76

Part Number: U4200A-10N

INTERMEDIATE GEAR 14.76


11
O-RINGS FOR MIDDLE GEAR

O-RINGS FOR MIDDLE GEAR

Part Number: U4200A-11N

O-RINGS FOR INTERMEDIATE GEAR

$  2.16

Delete from cart?
12

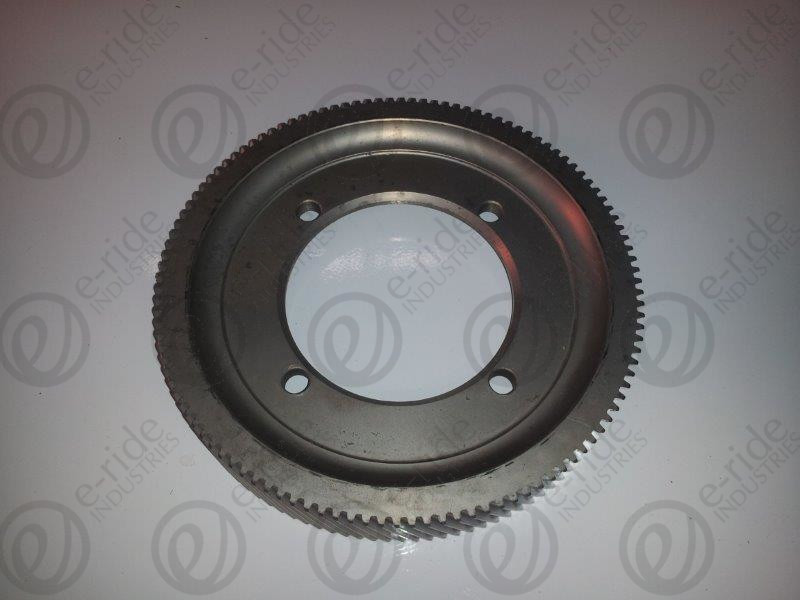

LARGE LOWER HELICAL GEAR

LARGE LOWER HELICAL GEAR

Part Number: U4200A-12N

LARGE LOWER HELICAL GEAR


13

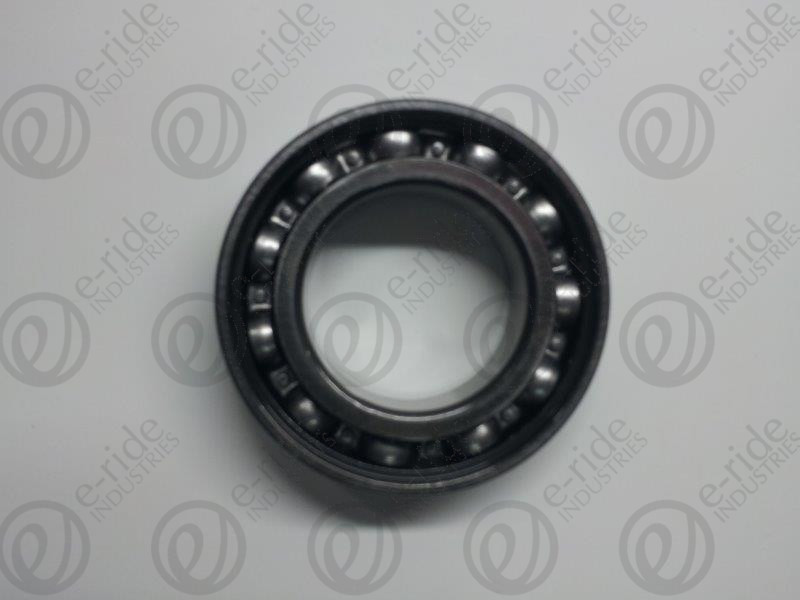

LOWER GEAR BALL BEARING

LOWER GEAR BALL BEARING

Part Number: U4200A-13N

LOWER GEAR BALL BEARING


14

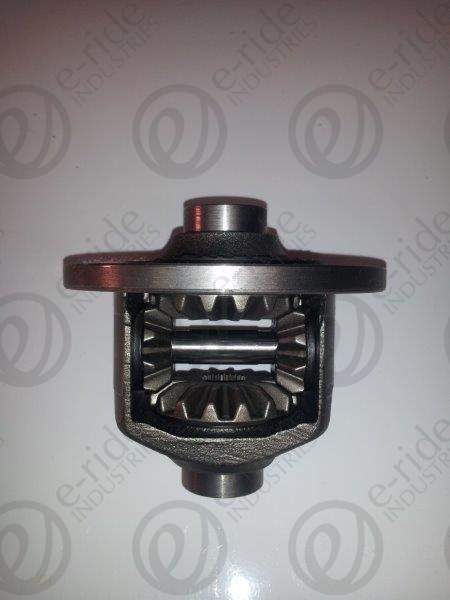

SPIDER GEAR ASSEMBLY

SPIDER GEAR ASSEMBLY

Part Number: U4200A-14N

SPIDER GEAR ASSEMBLY

$  129.69

Delete from cart?
15
LOWER GEAR MOUNTING BOLT

LOWER GEAR MOUNTING BOLT

Part Number: U4200A-15N

LOWER GEAR MOUNTING BOLT

$  1.80

Delete from cart?
16
NUT

NUT

Part Number: U4200A-16N

LOWER GEAR MOUNTING LOCK NUT

$  1.80

Delete from cart?
17
OIL PAN

OIL PAN

Part Number: U4200A-17N

OIL PAN


18
DRAIN PLUG

DRAIN PLUG

Part Number: U4200A-18N

DRAIN PLUG


19
OIL PAN BOLTS

OIL PAN BOLTS

Part Number: U4200A-19N

OIL PAN BOLTS

$  1.76

Delete from cart?
20
VENT

VENT

Part Number: U4200A-20N

VENT

$  2.50

Delete from cart?
21
LOCK NUT FOR BRAKE ASSEMBLY

LOCK NUT FOR BRAKE ASSEMBLY

Part Number: U4200A-21N

LOCK NUT FOR BRAKE ASSEMBLY

$  1.13

Delete from cart?
22
BOLT

BOLT

Part Number: U4200A-22N

BOLT FOR BRAKE ASSEMBLY MOUNTING

$  2.08

Delete from cart?
23
AXLE SEAL

AXLE SEAL

Part Number: U4200A-23N

AXLE SEAL


24
INNER AXLE RETAINING RING

INNER AXLE RETAINING RING

Part Number: U4200A-24N

INNER AXLE RETAINING RING

$  3.66

Delete from cart?
25
BEARING

BEARING

Part Number: U4200A-25N

OUTER AXLE BEARING RETAINER

$  21.91

Delete from cart?
26

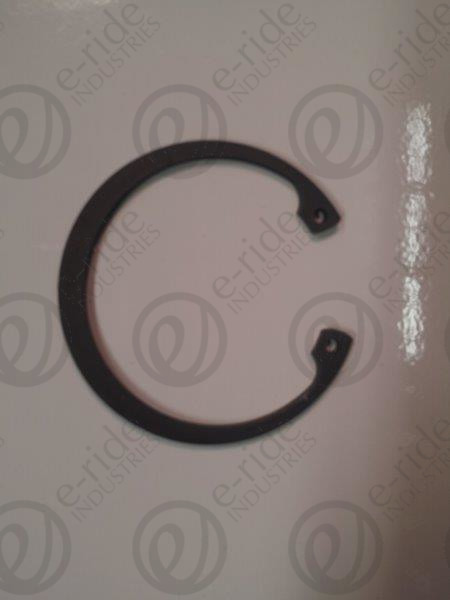

AXLE C-CLIP RETAINER

AXLE C-CLIP RETAINER

Part Number: U4200A-26N

AXLE C-CLIP RETAINER

$  2.55

Delete from cart?
27
BEARING

BEARING

Part Number: U4204A-37N

BEARING BALL 6205 2RS C3 25MM X 52MM (6205)

$  19.05

Delete from cart?
28
BRAKE SHOE ASSEMBLY L SIDE

BRAKE SHOE ASSEMBLY L SIDE

Part Number: U4200A-28N

BRAKE SHOE ASSEMBLY LEFT SIDE

$  221.32

Delete from cart?
29
BRAKE SHOE ASSEMBLY R SIDE

BRAKE SHOE ASSEMBLY R SIDE

Part Number: U4200A-29N

BRAKE SHOE ASSEMBLY RIGHT SIDE

$  221.32

Delete from cart?
30
LEFT LONG AXLE SHAFT

LEFT LONG AXLE SHAFT

Part Number: U4200A-30N

LEFT LONG AXLE SHAFT


31

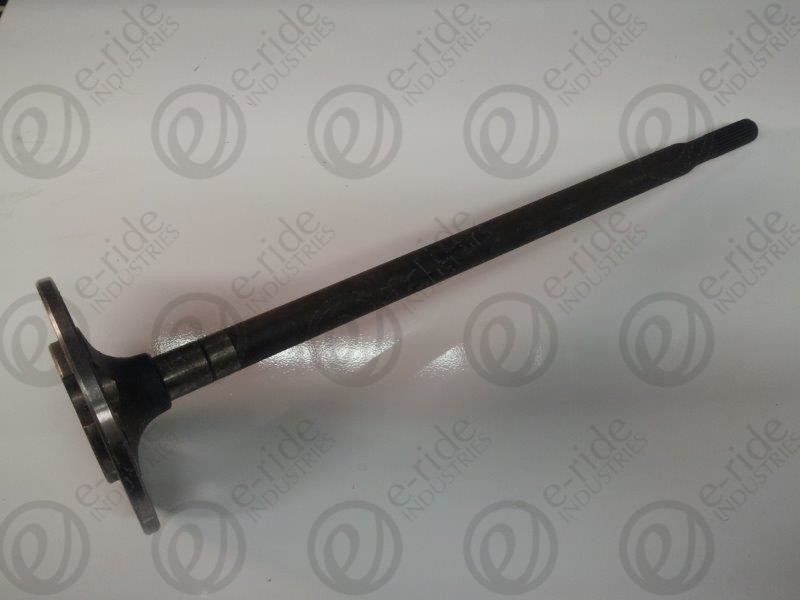

RIGHT SHORT AXLE SHAFT

RIGHT SHORT AXLE SHAFT

Part Number: U4200A-31N

RIGHT SHORT AXLE SHAFT


32
REAR AXLE WHEEL STUD

REAR AXLE WHEEL STUD

Part Number: U4200A-32N

REAR AXLE WHEEL STUD

$  3.40

Delete from cart?
33

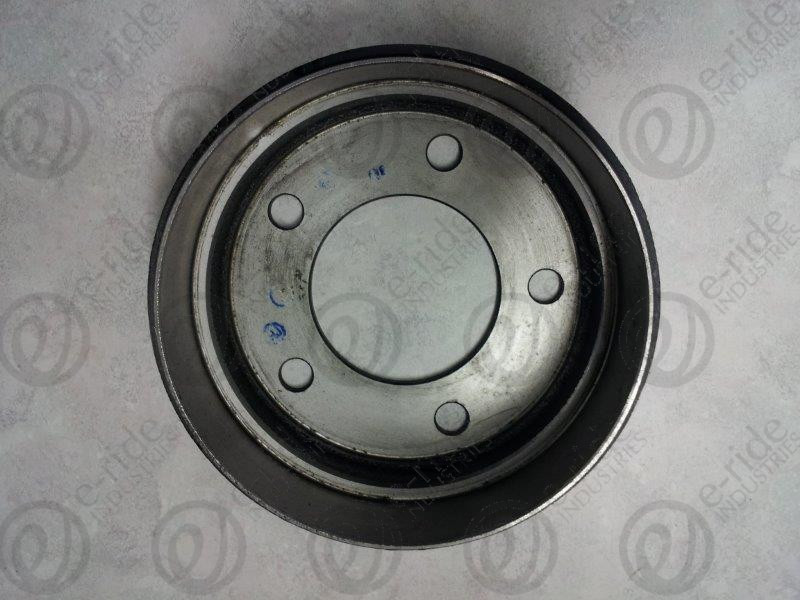

BRAKE DRUM

BRAKE DRUM

Part Number: U4200A-33N

BRAKE DRUM

$  85.69

Delete from cart?
34

Part Number: OBSOLETE


35

Part Number: OBSOLETE


36

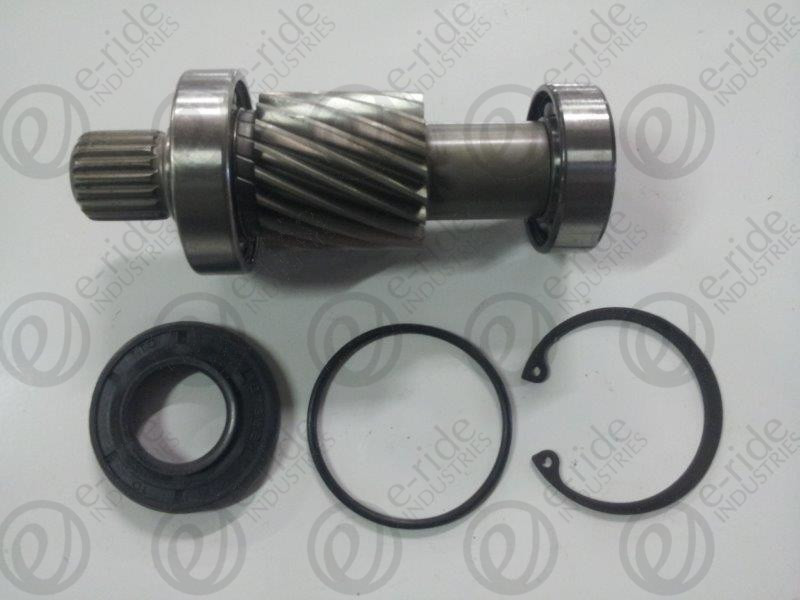

INPUT SHAFT GEAR SET

INPUT SHAFT GEAR SET

Part Number: U4200A-36N

INPUT SHAFT GEAR SET WITH SEAL 14.76


37
INPUT SHAFT SEAL

INPUT SHAFT SEAL

Part Number: U4200A-57N

INPUT SHAFT SEAL
