TEST
Part Breakdown Image

Fig #

1
FRONT SUSPENSION REAR PLATE

FRONT SUSPENSION REAR PLATE

Part Number: U1040A-E

FRONT SUSPENSION REAR PLATE

$  39.36

Delete from cart?
2
SUSPENSION GUSSET

SUSPENSION GUSSET

Part Number: U1041A-B

SUSPENSION GUSSET

$  49.06

Delete from cart?
3
STEERING RACK

STEERING RACK

Part Number: U4044A-OO

STEERING RACK FOR A COMPLETE BREAKDOWN OF THIS RACK AND PINONCLICK HERE.

$  151.53

Delete from cart?
4
5/16in SAE WASHER

5/16in SAE WASHER

Part Number: U8585A-N

5/16in SAE WASHER

$  0.08

Delete from cart?
5
NUT

NUT

Part Number: U8510A-N

5/16-18 SERRATED FLANGE HEX NUT

$  0.32

Delete from cart?
6
SCREW

SCREW

Part Number: U8680A-N

5/16-18 X 4.0in HEX CAP SCREW

$  1.80

Delete from cart?
7
5/16-18 X 1in HEX CAP SCREW

5/16-18 X 1in HEX CAP SCREW

Part Number: U8568A-N

5/16-18 X 1in HEX CAP SCREW

$  0.88

Delete from cart?
8
REAR LCA MOUNT

REAR LCA MOUNT

Part Number: U1209A-OO-BLK

REAR LCA MOUNT

$  23.74

Delete from cart?
9
3/8in SAE WASHER

3/8in SAE WASHER

Part Number: U8590A-N

3/8in SAE WASHER

$  0.16

Delete from cart?
10
SCREW

SCREW

Part Number: U8580A-N

3/8-16 X 1 1/4in HEX CAP SCREW

$  1.12

Delete from cart?
11
NUT

NUT

Part Number: U8506A-N

3/8-16 SERRATED FLANGE HEX NUT

$  0.40

Delete from cart?
12
SUSP. F FRAME BRACKET

SUSP. F FRAME BRACKET

Part Number: U1039A-B

SUSPENSION FRONT FRAME BRACKET

$  49.13

Delete from cart?
13
SCREW

SCREW

Part Number: U8681A-N

3/8-16 X 0.75in HEX CAP SCREW

$  0.96

Delete from cart?
14
L SIDE UPPER F SHOCK MNT.

L SIDE UPPER F SHOCK MNT.

Part Number: U7103L-C-BLK

LEFT SIDE UPPER FRONT SHOCK MOUNT

$  53.61

Delete from cart?
15
R SIDE UPPER F SHOCK MNT.

R SIDE UPPER F SHOCK MNT.

Part Number: U7103R-C-BLK

RIGHT SIDE UPPER FRONT SHOCK MOUNT

$  53.68

Delete from cart?
16
CALIPER HOSE MOUNT PLATE

CALIPER HOSE MOUNT PLATE

Part Number: U1151A-A

CALIPER HOSE MOUNT PLATE

$  3.45

Delete from cart?
17
SUSPENSION CENTER SUPPORT

SUSPENSION CENTER SUPPORT

Part Number: U1038A-D

SUSPENSION CENTER SUPPORT

$  38.21

Delete from cart?
18
FRONT SUSPENSION SUPPORT

FRONT SUSPENSION SUPPORT

Part Number: U1210A-A

FRONT SUSPENSION SUPPORT (REAR)

$  38.16

Delete from cart?
19
FRONT L LCA MOUNT BRACKET

FRONT L LCA MOUNT BRACKET

Part Number: U1106L-A-BLK

FRONT LEFT LCA MOUNT BRACKET

$  22.31

Delete from cart?
20
FRONT R LCA MOUNT BRACKET

FRONT R LCA MOUNT BRACKET

Part Number: U1106R-A-BLK

FRONT RIGHT LCA MOUNT BRACKET

$  22.31

Delete from cart?
21
HOOD STOPS/SHOCK BUMPER

HOOD STOPS/SHOCK BUMPER

Part Number: U6400A-N

HOOD STOPS/SHOCK BUMPER

$  3.40

Delete from cart?
22
SCREW

SCREW

Part Number: U8555A-N

3/8-16 X 1in HEX HEAD CAP SCREW

$  1.04

Delete from cart?
23
LOWER CONTROL ARM

LOWER CONTROL ARM

Part Number: U7101A-C-BLK

LOWER CONTROL ARM

$  106.18

Delete from cart?
24
UPPER CONTROL ARM

UPPER CONTROL ARM

Part Number: U7102A-B-BLK

UPPER CONTROL ARM

$  89.66

Delete from cart?
25
FLANGE BUSHING IGLIDE J

FLANGE BUSHING IGLIDE J

Part Number: U8404A-N

FLANGE BUSHING IGLIDE J (CONTROL ARM) (Qty. 2 required per hole) (Qty. 16 per vehicle)

$  3.73

Delete from cart?
26

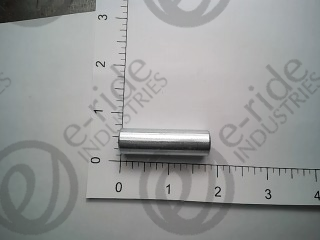

SLEEVE

SLEEVE

Part Number: U1252A-OO-BLK

SLEEVE

$  4.84

Delete from cart?
27

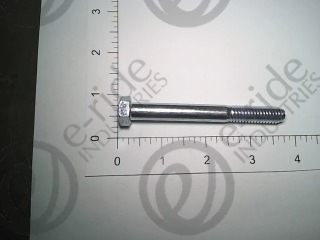

SCREW

SCREW

Part Number: U8509A-N

3/8-16 X 3 1/4in HEX CAP SCREW

$  1.35

Delete from cart?
28

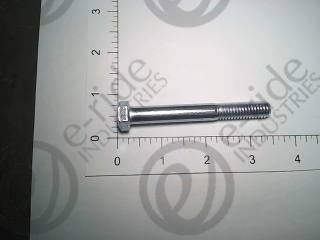

SCREW

SCREW

Part Number: U8544A-N

3/8-16 X 3in HEX HEAD CAP SCREW

$  1.35

Delete from cart?
29
3/8-16 NYLON LOCK NUT

3/8-16 NYLON LOCK NUT

Part Number: U8560A-N

3/8-16 NYLON LOCK NUT

$  0.48

Delete from cart?
30
BALL JOINT UPPER

BALL JOINT UPPER

Part Number: U4010A-N

BALL JOINT UPPER

$  25.20

Delete from cart?
31
LOWER BALL JOINT

LOWER BALL JOINT

Part Number: U4011A-N

LOWER BALL JOINT

$  22.54

Delete from cart?
32
SCREW

SCREW

Part Number: U8671A-N

3/8-16 X 1 SERRATED FLANGE SCREW GRADE 8

$  2.55

Delete from cart?
33
3/8-16 HEX FLANGE

3/8-16 HEX FLANGE

Part Number: U8672A-N

3/8-16 HEX FLANGE (AUTOMATION) LOCKNUT GRADE 8

$  1.84

Delete from cart?
34
FRONT COIL OVER SHOCK

FRONT COIL OVER SHOCK

Part Number: U4513A-C

FRONT COIL OVER SHOCK

$  95.13

Delete from cart?
35
SCREW

SCREW

Part Number: U8508A-N

M10-1.5 X 60 HEX HEAD CAP SCREW

$  1.58

Delete from cart?
36
SCREW

SCREW

Part Number: U8507A-N

M10-1.5 X 50 HEX HEAD CAP SCREW

$  1.67

Delete from cart?
37
M10-1.5 NYLON LOCK NUT

M10-1.5 NYLON LOCK NUT

Part Number: U8527A-N

M10-1.5 NYLON LOCK NUT

$  1.84

Delete from cart?
38
1/2in SAE WASHER

1/2in SAE WASHER

Part Number: U8586A-N

1/2in SAE WASHER

$  0.32

Delete from cart?
39
LEFT HAND STEERING KNUCKLE

LEFT HAND STEERING KNUCKLE

Part Number: U7104L-OO-BLK

LEFT HAND STEERING KNUCKLE

$  141.16

Delete from cart?
40
RIGHT HAND STEERING KNUCKLE

RIGHT HAND STEERING KNUCKLE

Part Number: U7104R-OO-BLK

RIGHT HAND STEERING KNUCKLE

$  141.16

Delete from cart?
41
5 1/2 DIA. HUB KIT

5 1/2 DIA. HUB KIT

Part Number: U4221A-N

5 1/2 DIA. HUB KIT

$  71.82

Delete from cart?
42
FRONT HUB DUST COVER

FRONT HUB DUST COVER

Part Number: U4222A-N

FRONT HUB DUST COVER

$  5.89

Delete from cart?
43
WASHER

WASHER

Part Number: U8622A-N

FRONT HUB WASHER 1in ID 1.75in OD 0.100in THK

$  2.67

Delete from cart?
44
F SPINDLE COTTER PIN

F SPINDLE COTTER PIN

Part Number: U8633A-N

FRONT SPINDLE COTTER PIN 1/8in 2.25in OVERALL 1.75in USEABLE

$  0.64

Delete from cart?
45
1in-14 12 SLOTTED NUT PLAIN

1in-14 12 SLOTTED NUT PLAIN

Part Number: U8670A-N

1in-14 12 SLOTTED NUT PLAIN

$  3.36

Delete from cart?
46
SCREW

SCREW

Part Number: U8669A-N

M10-1.5 X 70 HEX HEAD CAP SCREW

$  2.67

Delete from cart?
47
BRAKE ROTOR

BRAKE ROTOR

Part Number: U4131A-B

BRAKE ROTOR (5 1/2 DIA. HUB)

$  55.30

Delete from cart?
48
ADRENALINE CALIPER MNT. BKT.

ADRENALINE CALIPER MNT. BKT.

Part Number: U1278A-A-BLK

ADRENALINE CALIPER MOUNT BRACKET

$  28.93

Delete from cart?
49
3/8in SPLIT LOCK WASHER

3/8in SPLIT LOCK WASHER

Part Number: U8588A-N

3/8in SPLIT LOCK WASHER

$  0.24

Delete from cart?
50
3/8-16 HEX NUT

3/8-16 HEX NUT

Part Number: U8587A-N

3/8-16 HEX NUT

$  0.32

Delete from cart?
51
FRONT CALIPER BRAKE HOSE

FRONT CALIPER BRAKE HOSE

Part Number: U4451A-OO

FRONT CALIPER BRAKE HOSE

$  29.14

Delete from cart?
52
CLIPS FOR BRAKE HOSE

CLIPS FOR BRAKE HOSE

Part Number: U8642A-N

CLIPS FOR BRAKE HOSE

$  2.16

Delete from cart?
53
F BRAKE CALIPER BODY ONLY

F BRAKE CALIPER BODY ONLY

Part Number: U4102A-1N

FRONT BRAKE CALIPER BODY ONLY

$  117.14

Delete from cart?
54
FRONT ORGANIC BRAKE PAD

FRONT ORGANIC BRAKE PAD

Part Number: U4102A-2N

FRONT ORGANIC BRAKE PAD (Qty. 4 Required Per Vehicle)

$  19.46

Delete from cart?
55
FRONT CALIPER SLIDE PIN

FRONT CALIPER SLIDE PIN

Part Number: U4102A-3N

FRONT CALIPER SLIDE PIN (Qty. 2 Required Per Caliper)

$  5.53

Delete from cart?
56
COPPER CRUSH WASHER

COPPER CRUSH WASHER

Part Number: U4415A-N

COPPER CRUSH WASHER

$  0.80

Delete from cart?
57
BOLT

BOLT

Part Number: U4414A-N

775-101S 10MM X 1.0 BANJO BOLT

$  5.79

Delete from cart?
58
BRANCH TEE

BRANCH TEE

Part Number: U4442A-N

BRANCH TEE

$  10.19

Delete from cart?
59
BRAKE TEE BRACKET

BRAKE TEE BRACKET

Part Number: U1269A-OO

BRAKE TEE BRACKET (TECHNA-FIT TEE)

$  5.49

Delete from cart?
60
SELF DRILLING PHIL PAN

SELF DRILLING PHIL PAN

Part Number: U8641A-N

8-18 X 1/2in SELF DRILLING PHIL PAN

$  0.16

Delete from cart?
61
RIGHT FRONT BRAKE LINE

RIGHT FRONT BRAKE LINE

Part Number: U4428A-OO

RIGHT FRONT BRAKE LINE

$  27.94

Delete from cart?
62
FRONT LEFT BRAKE LINE

FRONT LEFT BRAKE LINE

Part Number: U4427A-OO

FRONT LEFT BRAKE LINE

$  13.62

Delete from cart?
63
1/8 PIPE THREAD UNION TEE

1/8 PIPE THREAD UNION TEE

Part Number: U4449A-N

1/8 PIPE THREAD UNION TEE

$  7.09

Delete from cart?
64
BRAKE LIGHT SWITCH

BRAKE LIGHT SWITCH

Part Number: U4410A-N

BRAKE LIGHT SWITCH

$  15.68

Delete from cart?
65
ADAPTER 1/8 NPTF X 3/16 FLARE

ADAPTER 1/8 NPTF X 3/16 FLARE

Part Number: U4454A-N

Adapter 1/8in NPTF x 3/16 F Inverted Flare Brass

$  16.00

Delete from cart?
66
STEER. RACK BOOT KIT L SIDE

STEER. RACK BOOT KIT L SIDE

Part Number: U4041A-2N

STEERING RACK BOOT KIT DRIVERS SIDE

$  20.81

Delete from cart?
67
STEERING RACK BOOT RS SIDE

STEERING RACK BOOT RS SIDE

Part Number: U4041A-3N

STEERING RACK BOOT PASSENGERS SIDE

$  20.81

Delete from cart?
69
NUT

NUT

Part Number: U4041A-6N

TIE ROD END JAM NUT 1/2-20 LH

$  1.20

Delete from cart?
