TAILGATE TOPPER
Part Breakdown Image

Fig #

1
1/4in SAE WASHER

1/4in SAE WASHER

Part Number: U8589A-N

1/4in SAE WASHER

$  0.08

Delete from cart?
2
1/4in SPLIT LOCK WASHER

1/4in SPLIT LOCK WASHER

Part Number: U8584A-N

1/4in SPLIT LOCK WASHER

$  0.48

Delete from cart?
3
SCREW

SCREW

Part Number: U2832A-N

1/4-20 X 2 HEX HEAD CAP SCREW

$  1.35

Delete from cart?
4

Part Number: OBSOLETE


6
ADHESIVE BACKED FOAM (1 FOOT)

ADHESIVE BACKED FOAM (1 FOOT)

Part Number: F8025A-N

1/4 THICK X 1 WIDE X 35FT BLACK ADHESIVE BACKED FOAM (SOLD BY FOOT)

$  1.36

Delete from cart?
10
ADHESIVE BACKED FOAM (1 FOOT)

ADHESIVE BACKED FOAM (1 FOOT)

Part Number: F8025A-N

1/4 THICK X 1 WIDE X 35FT BLACK ADHESIVE BACKED FOAM (SOLD BY FOOT)

$  1.36

Delete from cart?
11
1/4-20 X 1in HEX CAP SCREW

1/4-20 X 1in HEX CAP SCREW

Part Number: U8577A-N

1/4-20 X 1in HEX CAP SCREW

$  0.64

Delete from cart?
12
3/16in BRIDGE PIN

3/16in BRIDGE PIN

Part Number: U8551A-N

3/16in BRIDGE PIN

$  1.04

Delete from cart?

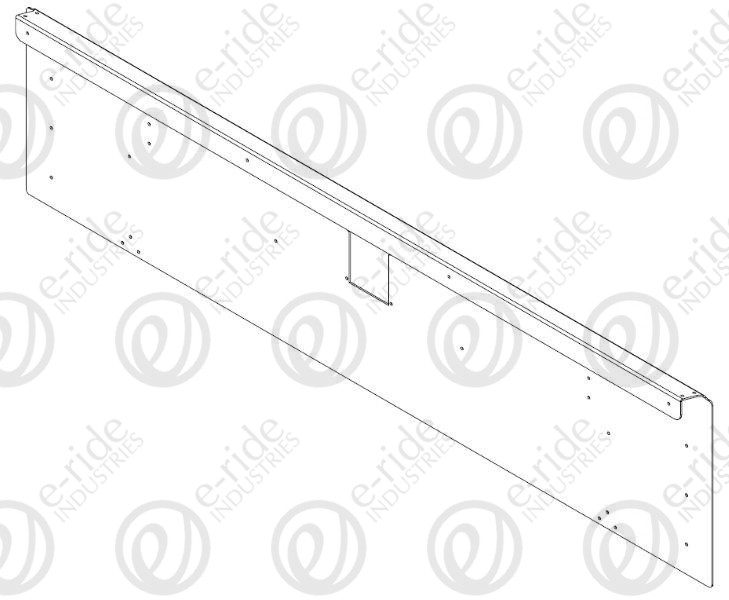

13
TAILGATE OUTER BASE

TAILGATE OUTER BASE

Part Number: F2410A-B

TAILGATE OUTER BASE


14

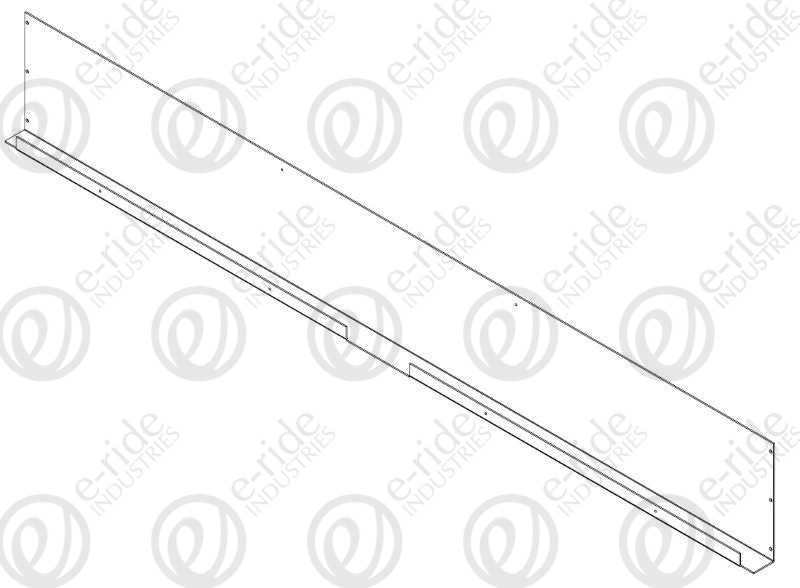

TAILGATE INNER COVER

TAILGATE INNER COVER

Part Number: F2411A-OO

TAILGATE INNER COVER


15L
TAILGATE L VERT. SUPPORT

TAILGATE L VERT. SUPPORT

Part Number: F2412L-C

TAILGATE LEFT VERTICAL SUPPORT

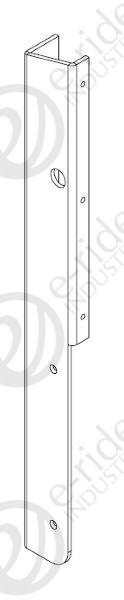

15R
TAILGATE R VERT. SUPPORT

TAILGATE R VERT. SUPPORT

Part Number: F2412R-C

TAILGATE RIGHT VERTICAL SUPPORT

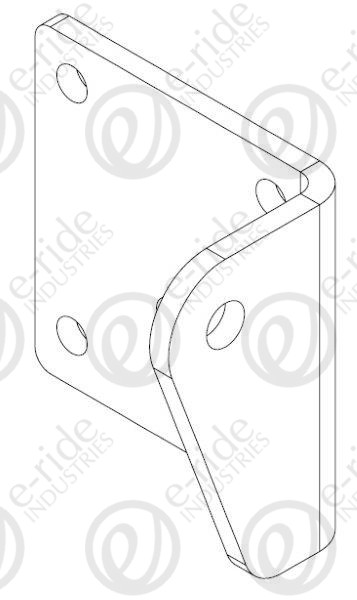

17
LEFT TAILGATE HINGE B

LEFT TAILGATE HINGE B

Part Number: F2413L-OO

LEFT TAILGATE HINGE B

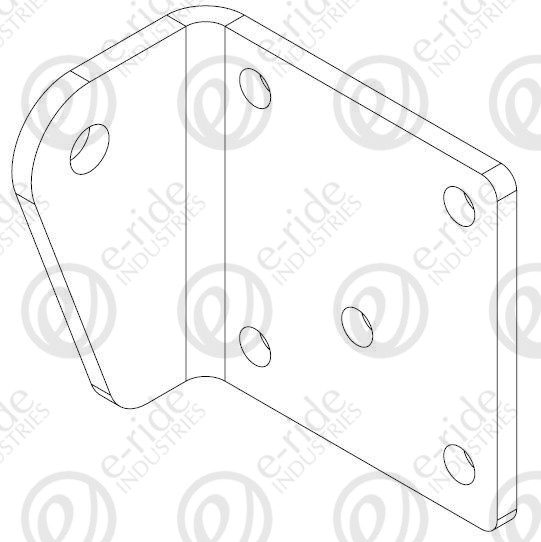

18
RIGHT TAILGATE HINGE B

RIGHT TAILGATE HINGE B

Part Number: F2413R-OO

RIGHT TAILGATE HINGE B


19
LEFT TAILGATE HINGE A

LEFT TAILGATE HINGE A

Part Number: F2414L-A

LEFT TAILGATE HINGE A

$  21.05

Delete from cart?
20

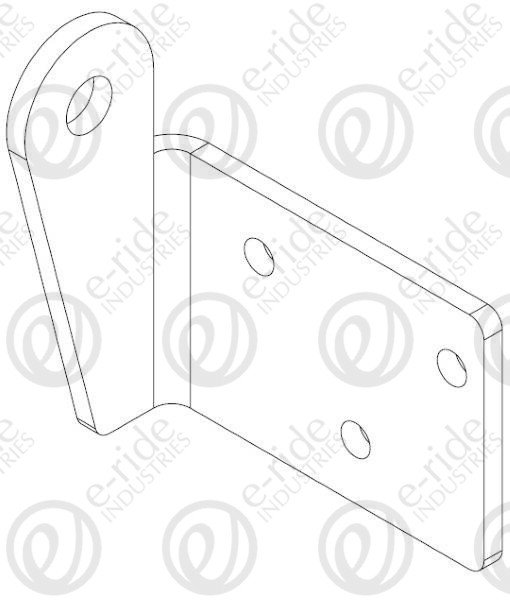

RIGHT TAILGATE HINGE A

RIGHT TAILGATE HINGE A

Part Number: F2414R-A

RIGHT TAILGATE HINGE A

$  21.05

Delete from cart?
21
3/8 ID IGUS BUSHING

3/8 ID IGUS BUSHING

Part Number: F2811A-N

3/8 ID IGUS BUSHING

$  1.96

Delete from cart?

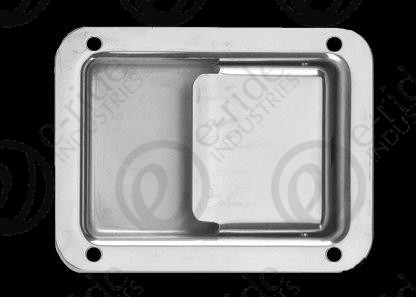

22
TAILGATE HANDLES

TAILGATE HANDLES

Part Number: C3100A-N

TAILGATE HANDLES

$  38.25

Delete from cart?
23
HOOD HINGE BUSHING

HOOD HINGE BUSHING

Part Number: U8399A-N

HOOD HINGE BUSHING

$  1.92

Delete from cart?
24
BOLT

BOLT

Part Number: U8662A-N

10-24 1/4in X 3/8in SS SOCKET HEAD SHOULDER BOLT

$  3.49

Delete from cart?
25
10-24 NYLON LOCK NUT

10-24 NYLON LOCK NUT

Part Number: U8610A-N

10-24 NYLON LOCK NUT

$  0.40

Delete from cart?
26
#10 SAE WASHER

#10 SAE WASHER

Part Number: U8561A-N

#10 SAE WASHER

$  0.08

Delete from cart?
27
SELF DRILLING PHIL PAN

SELF DRILLING PHIL PAN

Part Number: U8641A-N

8-18 X 1/2in SELF DRILLING PHIL PAN

$  0.16

Delete from cart?
28
SCREW

SCREW

Part Number: U8700A-N

1/4-20 X 3/4 THREAD CUTTING SCREW TYPE F PHIL FLAT UNDERCUT

$  1.76

Delete from cart?

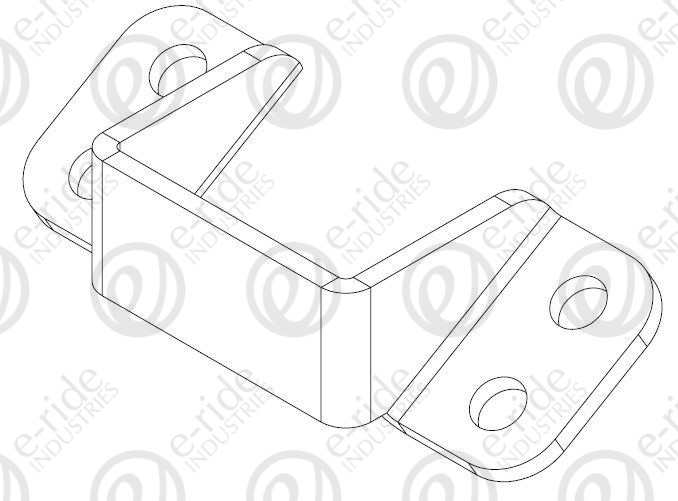

29
LATCH

LATCH

Part Number: F2415A-A

TAILGATE LATCH CATCH STEEL VERSION

$  13.45

Delete from cart?
30
PARK BRAKE ROD

PARK BRAKE ROD

Part Number: U4421A-N

PARK BRAKE ROD (BEFORE MACHINING)


31
10-24 X 3/4 TRUSS HEAD

10-24 X 3/4 TRUSS HEAD

Part Number: U8611A-N

10-24 X 3/4 TRUSS HEAD

$  0.64

Delete from cart?
32
RIVET

RIVET

Part Number: U8600A-N

MULTI-GRIP RIVET -STEEL STRUC. [.062-.437]

$  1.36

Delete from cart?
33
SCREW

SCREW

Part Number: U8626A-N

#8 X 3/4in PHIL.PAN SELF DRILL AND TAP SCREW

$  0.24

Delete from cart?
34

Part Number: OBSOLETE

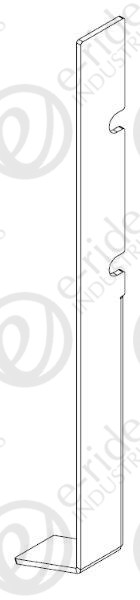

37L
TOPPER TAILGATE SEAL BKT.

TOPPER TAILGATE SEAL BKT.

Part Number: F2418L-OO

TOPPER TAILGATE SEAL BRACKET

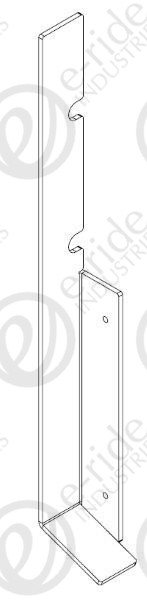

37R
TOPPER TAILGATE SEAL BKT.

TOPPER TAILGATE SEAL BKT.

Part Number: F2418R-OO

TOPPER TAILGATE SEAL BRACKET
